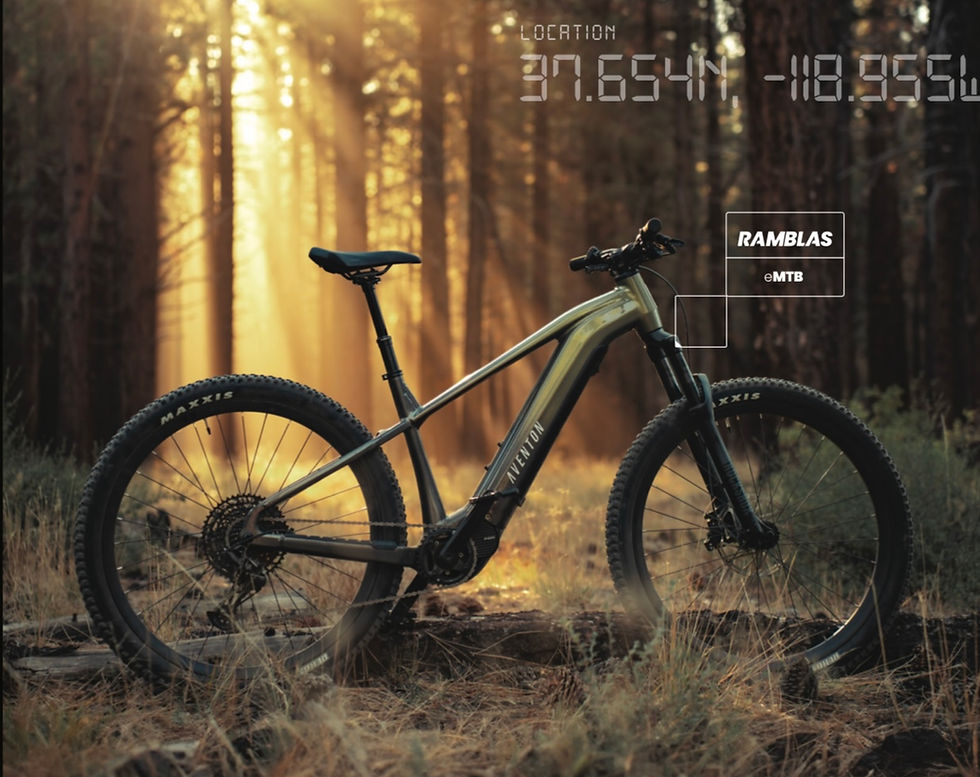

Aventon Ramblas
Carve out the uncommon route with Ramblas, Aventon’s first-ever electric mountain bike (eMTB) with an intelligent mid-drive motor. Its mid-drive motor is Aventon-designed, a first in the Aventon line-up, offering riders personalized tuning capabilities through the Aventon app for an amplified natural riding experience. Rugged and reliable, this hardtail, all-terrain ebike offers 130mm of suspension travel, providing the ultimate comfort on mountain trails or city streets. Get ready to roam, ramble, and revel in the more dynamic side of the ride. With Ramblas, it’s mountain time, all the time. Ramblas is an electric mountain bike (eMTB) made for the all-terrain. Road tested and trail ready, it comes equipped with the first-ever Aventon-designed mid-drive motor capable of being tuned to how you want to ride. Hop on and get rolling, the mountains are calling.”
Size & Fit
Small 5'1" - 5'5"
Medium 5'5" - 5'9"
Large 5'10" - 6'2"
XL 6'2" - 6'5"
App - Ride Tune
App - Ride Tune Ramblas’ Ride Tune, found in the Aventon app, enables motor support customization in Eco, Trail, and Turbo modes. While optional, it’s recommended for fine-tuning Assistance, Max Torque, and Acceleration, enhancing the riding experience either via the app or handlebar controls
Assistance* Assistance is the motor’s power contribution to the rider’s effort. For instance, at 50% it adds 30 watts to your 60 watt output, while 100% adds 60 watts.
Max Torque* Max Torque can be adjusted to change the feel of how you ride. Decreasing the max torque provides a more natural ride feel and increases battery range.
Acceleration* Acceleration determines the bike’s initial power from a stop. Higher settings mean quicker response, while lower settings offer a more natural feel.
Technical Specs
GENERAL INFO
MODEL
Ramblas eMTB
WEIGHT
54lbs, size large, w/o pedals
FRAMESET
FORK
RockShox 35 Silver TK 130mm travel. Coil, 44mm offset, 15x110 QR axle, 1.5" tapered steerer tube
FRAME
Single-Butted Aluminum Alloy
WHEELSET
HUBS
15x110 32H Front, 12x148 32H Rear
RIM
Double Wall Aluminum 32h Front & Rear
SPOKES
Black Stainless 13 Gauge
TIRES
S Maxxis Rekon 27.5x2.4", M/L/XL Maxxis Rekon 29x2.4"
TUBES
Butyl Rubber, Schrader Valve
EBIKE SYSTEM
BATTERY
Aventon 708 WH. 36V LG 21700 cells.
CHARGER
42V 4A charger
DISPLAY
LCD Smart "Easy Read"
MOTOR

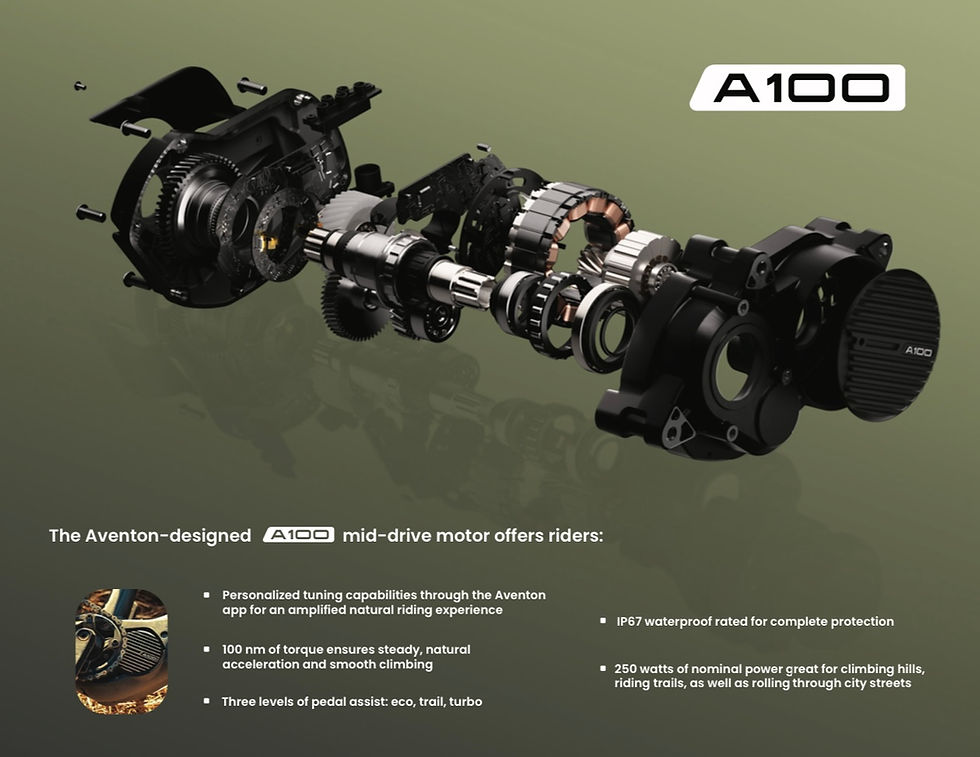

Aventon a100 mid-drive. 36v, 250W (sustained), 750W (peak), 100NM torque. IP67 rating
BRAKES
REAR BRAKE ROTOR
Sram 180mm 6 bolt
FRONT BRAKE ROTOR
Sram 200mm 6 bolt
BRAKES
Sram DB8 mineral 4 piston hydraulic disc brakes
DRIVETRAIN
REAR DERAILLEUR
Sram NX Eagle 1x12
PEDALS
9/16" Alloy Platform
CHAINRING
Sram Nx 34t
CASSETTE
Sram SX Eagle 1x12 11-50t
SHIFT LEVER
Sram NX Eagle 1x12 single click
COCKPIT
SEATPOST
150mm travel for size M-XL. 125mm travel for size S. 31.6mm ø. 395mm length
HANDLEBARS
35mm, 9° rise, 720mm width for size S, 760mm width for size M-XL
GRIPS
Lock on
STEM
35mm Ø, 40mm length
SEAT CLAMP
Aventon 34.9mm
INCLUDED ACCESSORIES
KICKSTAND
Included in accessory box
Technical Overview
Ramblas comes out of the box as a Class I ebike, with pedal assist and a top speed of 20 MPH. Aventon’s Ramblas is built to the IP67-rated standard. IP67 rating means it’s protected against the effects of immersion in water to a depth between 15 cm and 1 meter. IP67-rated products are referred to as waterproof vs only water-resistant, so you can cross creeks, and ride in rain and mud without worry. Aventon ebikes are not intended to be subjected to a pressurized spray. Do not use a pressure washer or sprayer to clean your ebike.
